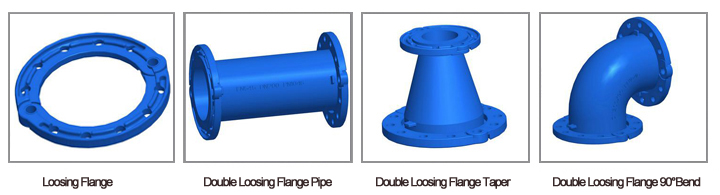

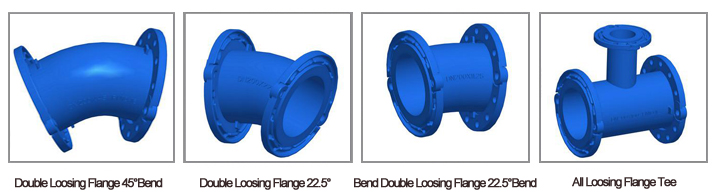

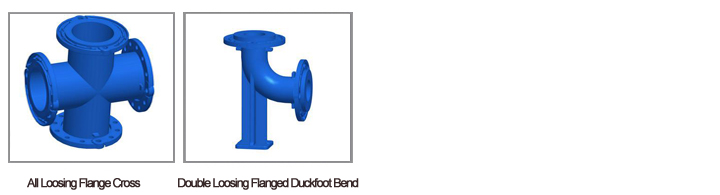

DI Loosing Flange Fittings

Specification:

Material:

Body：Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083.PN10,PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2

Fluid temperature: 0°C-50°C， excluding frost

Coating：

Externall coatings: 1. zinc coating +bitumen painting 2. liquid epoxy painting 3. epoxy applied by FBE

Internall coatings： 1. cement mortar lining 2. liquid epoxy painting 3. epoxy applied by FBE according to customers' requirements.

Joint Type	Flange, Tyton joint(push on joint); Bolted Gland K type Joint
Standard	ISO2531, BS EN545, EN598, BS4772, etc
Specification	DN50 to DN2000, K12/14
Material	Ductile Cast Iron GGG50
Pressure	PN10, PN16, PN25
Application	Water supply project, drainage, irrigation, water pipeline system.
Surface Inside	Portland Cement mortar lining, bitumen paint, epoxy paint, powder
Surface Outside	Epoxy paint, bitumen paint, epoxy powder coating
Accessories	Gaskets, bolts and nuts available upon request
