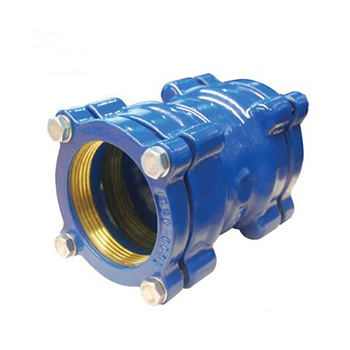

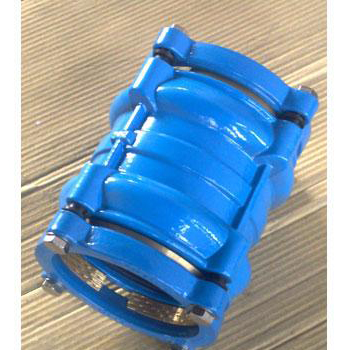

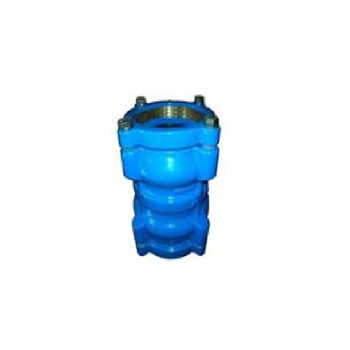

Restrained Coupling For PE

< >

a.details

1)OD40mm-OD400mm

2)Suit for joining with PE pipes

3）Use：For air, water, sewer and gas pipelines

b.Material and coating

1） End rings-ductile iron to BS2789 grade 420/12, 500/7

2） Sleeve-ductile iron to BS2789 grade 420/12,500/7

3） Gripping rings: brass

4） Coating –fusion Bonded epoxy to SABS1217, minimum thickness 250 microns, colors in RAL5005, RAL5015, RAL3009, RAL9005, RAL9011 or others/td>

5） Bolts-steel to BS970 grade 070M20., carbon steel Grade 8.8, SS304 or SS316 Bolts available upon requests

6） Bolt coating- galvanized

c. Gasket:

Rubber seal-E.P.D.M Grade E to BS2494 1990 Type W&D

Body Material	ductile iron GJS450-10
Gland	ductile iron GJS450-10 with brass ring
Bolt	Carbon stee galv. grade 8.8,stainless steel or carbron steel
Gasket materials	EPDM/SBR
Pressure	PN10,PN16
Coating	Fusion bonded epoxy
Package	Wooden cases or as per customer's requirements.
